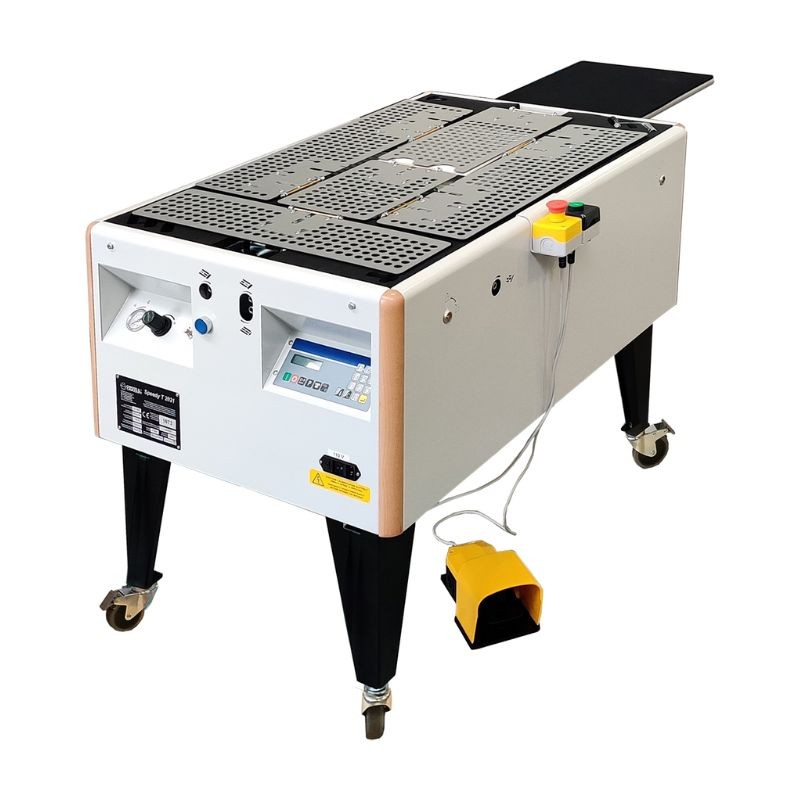

Speedy-T | Chiossi e Cavazzuti Textile Folding Machine
- Reference: CeC-Speedy-T-2022
€9,500.00 Tax excluded
Description
In DTG, DTF or screen printing workshops, textile folding machine takes time and often requires several operators. The Speedy-T 2021 by Chiossi e Cavazzuti automates textile folding and packaging to speed up order preparation right through to dispatch.
With a production speed of up to 500 garments per hour, it adapts from baby garments to XXL sweatshirts thanks to adjustable folding blades that can be set in just a few seconds.
The textile folding machine can store up to 10 folding programs to simplify production changes.
Two modes for order preparation
The Speedy-T offers two operating modes depending on your production organisation.
- Stacking mode: The T-shirt is folded automatically and then placed onto a descending platform to create a clean and even stack.
- Bagging mode: The sweatshirt is folded and held on the last folding blade to allow easy bagging.
Advantages of the Speedy-T industrial T-shirt folding machine
Designed for textile production, it offers several advantages to automate folding and improve packaging consistency.
- Consistent folding: Each garment is folded to the same format, making order preparation and storage easier.
- Industrial build quality: Compact and robust structure with easy access to internal components for maintenance.
- Multi-language interface: LCD interface available in French, English, Spanish, Italian and German, ideal for international teams and resellers.
- Low power consumption: Maximum power consumption of 60 W helps keep energy usage low, even in continuous production.
Speedy-T features
The garment folding machine combines production functions with technical features adapted to textile workshops.
Semi-automatic folding machine functions:
The automatic folding machine includes several features to simplify operation, production monitoring and maintenance.
- Automatic fault and error diagnosis;
- Production counter with programmable alert threshold;
- Start/stop control via foot pedal.
Technical data of the textile folding machine:
Below are the main technical specifications of the Speedy-T for workshop use.
- Folded garment width: 150 to 180 mm;
- Folded garment length: 350 to 400 mm;
- Required air pressure: 6 bar / max. consumption 50 l/min;
- Weight: 110 kg.
Which workshops is the Speedy-T suitable for?
The Speedy-T is suitable for textile workshops producing in medium to large volumes. It becomes relevant from around 150 to 200 garments per day.
In screen printing workshops, garment preparation quickly becomes a workstation of its own. This folding machine saves time during order preparation and prevents bottlenecks at the end of the production line.
Integrating the Speedy-T into a textile workshop
The Speedy-T 2021 is typically positioned after a conveyor dryer or heat press. Mounted on wheels, the machine can be moved easily and repositioned according to workshop layout. Connection is simple: a 80–240 V power supply and a standard 8 × 6 mm air connection.
Only one operator is required to run the folding machine: the foot pedal control keeps both hands free and maintains a steady production rhythm without interruption.
| TECHNICAL DATA | VALUES |
|---|---|
| POWER SUPPLY | 80–240 V 1P + N + PE |
| INPUT POWER (max) | 60 W |
| REQUIRED AIR PRESSURE | 6 bar |
| AIR CONNECTION | 8 x 6 mm |
| AIR CONSUMPTION (max) | 50 l/min |
| NUMBER OF PROGRAMMES | 10 |
| PRODUCTION WITH STACKER (max) | 500 pieces/hour |
| PRODUCTION WITH BAGGING (max) | 350 pieces/hour |
| T-SHIRT FOLD WIDTH (min / max) | 150 / 180 mm |
| T-SHIRT FOLD LENGTH (min / max) | 350 / 400 mm |
| DIMENSIONS (L x W x H) | 1600 x 770 x 860 mm |
| LENGTH WITH/WITHOUT STACKER RAISED | 1500 / 1150 mm |
| WEIGHT | 110 kg |
Download
-
Speedy-T-GUIDE - Speedy-T-GUIDE
