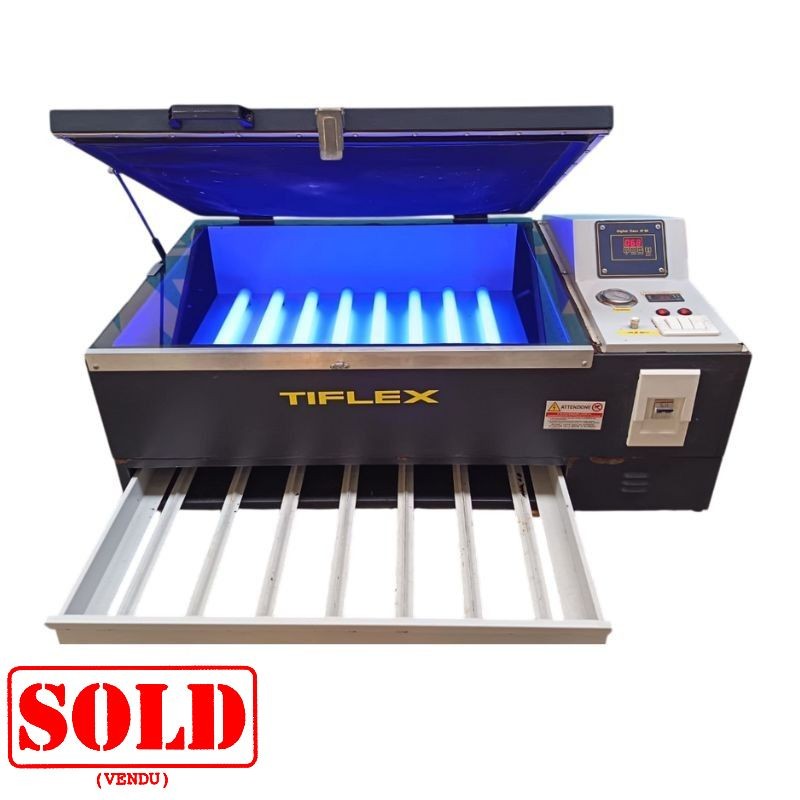

Used Tiflex screen exposing unit and drying cabinet / 1 Drawer – Ref. 23L6080

Description

Compact tabletop unit for screen exposing and drying. This pre-owned Tiflex screen exposing unit and drying cabinet is suitable for screens up to 60 × 80 cm. Fully tested and verified, it ensures reliable performance for professional screen preparation.

Overview of the Tiflex screen exposing and drying unit

The Tiflex 608 / 1 drawer screen exposing unit and drying cabinet is a compact, ergonomic two-in-one system. It combines a vacuum exposure frame with a hot-air drying cabinet, ideal for textile, signage, and industrial workshops.

Main technical specifications

• Maximum screen format: 60 × 80 cm;
• Number of UV tubes: 8 × 40 W;
• Glass dimensions: 79.5 × 99.5 cm;
• Overall dimensions: 87 × 133 × 54 cm;
• Power supply: 230 V single phase;
• Operating current: 12 A;
• Noise level: maximum 60 dB;
• Product reference: 23L6080.

Exposure function: precision and consistency

The exposure section of the Tiflex 608 / 1 drawer unit delivers uniform light distribution through its neon lighting and pneumatic vacuum system. This ensures precise image transfer and sharp stencil definition on every screen.

• Durable, reliable pneumatic frame;
• Powerful, quiet rotary vane vacuum pump;
• Fixed glass with inspection hatch for easy cleaning and maintenance;
• Flexible UV-resistant mat (deformation up to 7 cm);
• Uniform lighting with 8 × 40 W tubes.

Screen drying function

The integrated screen drying cabinet features a ventilated wire drawer with hot-air circulation. The temperature controller allows fast, even drying without affecting emulsion layers.

• 1 ventilated wire drawer (608 / 1 drawer version);
• Hot-air circulation system;
• Accurate temperature regulation;
• Fast and even screen drying.

Benefits of the Tiflex 608 combined unit

This Tiflex combined system offers maximum productivity in minimal space. Its ergonomic design and quiet operation make it ideal for professional use in small or medium workshops.

• All-in-one solution: exposure and drying combined;
• High exposure precision thanks to pneumatic vacuum;
• Fast, regulated drying for continuous production flow;
• Easy and quick maintenance;
• Compact design, low noise level (60 dB).

Installation and usage

The Tiflex 608 / 1 drawer model can be easily installed on a stable table or workbench. It runs on a 230 V single-phase supply and includes a built-in vacuum system. For optimal performance, it should be used in a well-ventilated, dry environment.

Pre-owned Tiflex screen printing equipment

This pre-owned Tiflex screen exposing unit and drying cabinet has been fully checked and tested by Manutech-Print technicians to ensure optimal operation.

• Full inspection of vacuum pump, UV tubes, and ventilation system;
• Cleaning, testing, and refurbishment before dispatch;
• Delivery available across France and Europe (not included);
• Technical support available for installation.

Tiflex 608 / 1 drawer exposing unit

The pre-owned Tiflex 608 / 1 drawer model offers excellent value for professionals seeking a compact and efficient system. Its two-in-one design saves space and reduces handling, while maintaining consistent exposure quality. Purchasing a used model ensures cost savings without compromising on Tiflex reliability and precision.
