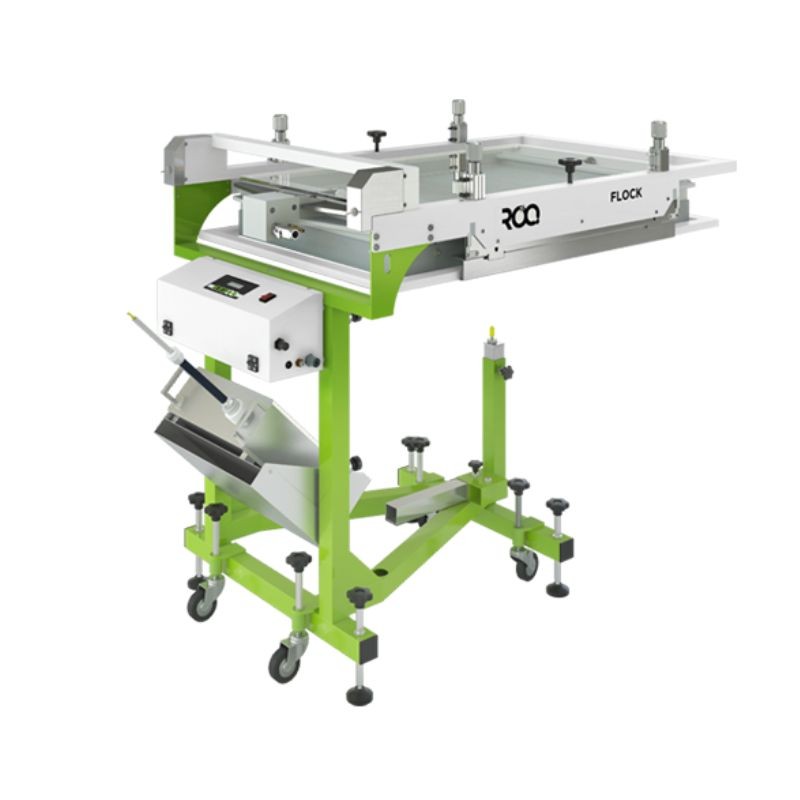

ROQ FLOCK | Automatic textile flocking unit
- Reference: ROQ-FLOCK
Description
Flock effects add depth and a premium textile feel. However, between manual fibre application, material waste and inconsistent finishes, flock printing remains difficult to industrialise for high-volume production.
The ROQ FLOCK automates flock application on your screen-printing carousel. This electrostatic flocking unit distributes fibres evenly onto the textile adhesive to create raised velvet effects at high production speeds.
Compatible with all ROQ automatic carousels, the ROQ FLOCK is designed for textile workshops producing at industrial scale. You maintain premium finishing quality without sacrificing productivity.
ROQ FLOCK Production Capabilities
Available in several formats, the ROQ FLOCK supports different textile print sizes, from standard logos to large-format prints.
- ROQ FLOCK 400 × 600 mm : Standard logos and textile markings
- ROQ FLOCK 450 × 950 mm : Wider textile visuals
- ROQ FLOCK 600 × 850 mm : Large-format and industrial textile printing
The ROQ FLOCK can reach production speeds of up to 600 pieces per hour. Its enclosed structure limits fibre dispersion within the production area and reduces cleaning during production runs.
Technical Specifications of the ROQ FLOCK
The electrostatic generator of the ROQ Flock improves fibre distribution across the textile surface to achieve a consistent finish.
Below are the key specifications required for operating the ROQ FLOCK in production:
- Recommended fibre length: 0.5 to 1.5 mm (polyamide)
- Electrostatic generator: 60 kV (adjustable)
- Power supply: 230 V
- Power consumption: 0.2 kVA
- Maximum screen size: 804 × 1238 mm
Benefits of the ROQ FLOCK for Your Textile Workshop
In textile screen printing, the ROQ FLOCK automates a long and manual process. It applies flock fibres directly during the carousel cycle, removing the need for an additional external workstation.
This automation of flock printing provides several production advantages:
- Reduced manual handling
- Higher production speeds for flocked runs
- Consistent flock fibre density on every garment
- Reduced flock waste within the workshop
- More uniform results across large production runs
- Enhanced garment value through velvet-style finishes
With the ROQ FLOCK, textile workshops can develop premium velvet effects that increase the perceived value of garments while maintaining an industrial production workflow.
ROQ FLOCK in Textile Production
The ROQ FLOCK synchronises with the screen-printing carousel system.
After applying textile adhesive using the ROQ ONE, the ROQ FLOCK automatically projects flock fibres onto the still-wet area to create a consistent raised velvet effect.
The module is generally used alongside the ROQ ASP, which removes excess fibres after application to keep the production area clean during printing runs.
The ROQ FLOCK is compatible with several ROQ automatic carousel ranges, including ROQ YOU, ROQ ECO, ROQ NEXT, ROQ FIT, ROQ OVAL PRO and ROQ OVAL EVOLUTION.
| ROQ FLOCK | 4060 | 4595 | 6085 |
|---|---|---|---|
| Recommended flock type | Polyamide | Polyamide | Polyamide |
| Flock length | 0.5 to 1.5 mm / 3.3 dtex | 0.5 to 1.5 mm / 3.3 dtex | 0.5 to 1.5 mm / 3.3 dtex |
| High voltage power supply | 10 to 80 kV | 10 to 80 kV | 10 to 80 kV |
| Flocking area | 400 × 600 mm | 450 × 950 mm | 600 × 850 mm |
| Maximum frame size | 604 × 988 mm | 654 × 1338 mm | 804 × 1238 mm |
| Recommended frame profile | 40 × 20 mm | 40 × 20 mm | 40 × 20 mm |
| Total length | 1300 mm | 1350 mm | 1550 mm |
| Total height | 1230 mm | 1230 mm | 1230 mm |
| Total width | 760 mm | 810 mm | 920 mm |
| Power supply | 230 V + N / 2 × 230 V | 230 V + N / 2 × 230 V | 230 V + N / 2 × 230 V |
| Maximum consumption | 0.2 kVA | 0.2 kVA | 0.2 kVA |
