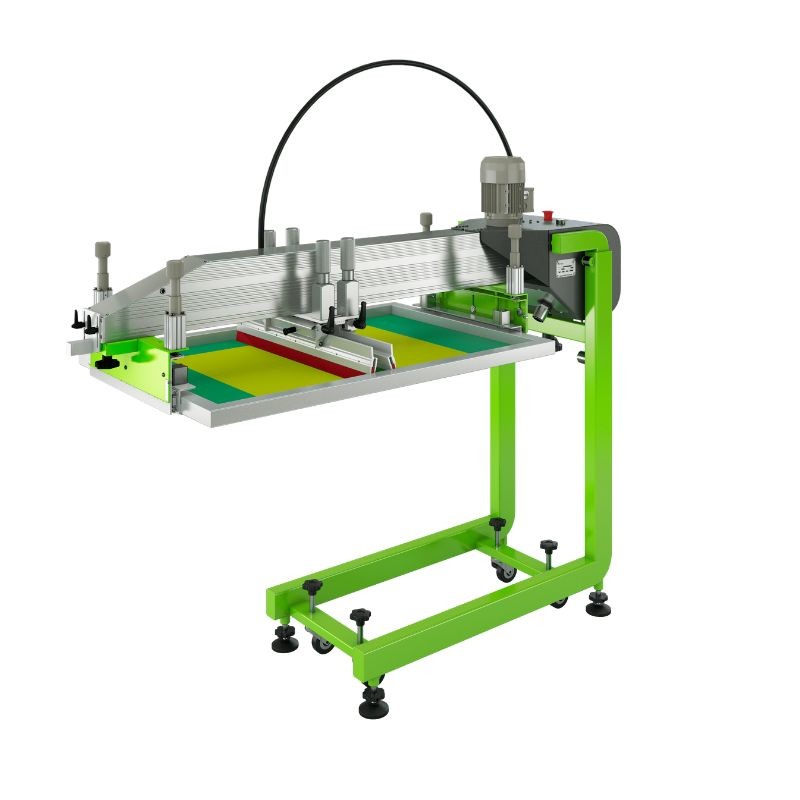

ROQ ONE | Independent Print Head for Screen Printing Carousels

The ROQ ONE works as an additional independent print head designed for automatic ROQ oval and circular screen printing carousels. It automates specific technical applications without occupying the main printing stations.

This independent print head for screen printing carousels automates textile adhesive application, speciality inks and selected decorative effects.

It operates on areas up to 700 × 1000 mm while leaving more stations available for the main colours in order to maintain high output during long production runs.

The ROQ ONE can also run a squeegee over a screen without ink in order to flatten the garment before printing. It presses the textile against the pallet, reduces certain creases and prepares a more uniform surface before the colour stations.

Automate textile adhesive applications directly on the carousel

Some applications quickly occupy several stations on an automatic screen printing carousel and complicate the organisation of long production runs.

The ROQ ONE automates several operations directly on the carousel:

• Textile adhesive application on screen printing carousels;
• Preparation for textile flock effects;
• Application of technical inks and raised gel effects;
• Flattening garments before printing.

The additional ROQ print head automatically synchronises each operation with the movement of the ROQ screen printing carousel.

Technical applications run continuously without additional external stations or manual handling around the machine.

Two formats available depending on workshop requirements

ROQ offers two configurations in order to cover different textile formats and print sizes.

• ROQ ONE XL+ : maximum print area: 60 × 80 cm;
• ROQ ONE 2XL : maximum print area: 70 × 100 cm.

The 2XL format suits oversized prints on hoodies, sweatshirts and large-format garments.

Textile adhesive application without spray adhesive

In many workshops, spray adhesives leave residues around screen printing carousels and increase operator intervention during production runs.

The ROQ ONE applies textile adhesive directly onto the pallet through the screen. Application remains consistent throughout production and removes variations linked to manual spraying.

This automation provides several production benefits:

• Removal of spray adhesives around the carousel;
• Reduction of adhesive residues;
• Lower adhesive consumable usage;
• Reduced manual handling;
• Cleaner working environment.

On high-output production runs, the gains quickly become significant.

Technical specifications of the ROQ ONE

The ROQ ONE suits textile workshops looking for greater flexibility on speciality applications without slowing production.

Main technical specifications:

• Compressed air consumption: 26.7 L/min;
• Power consumption: 500 VA;
• Touchscreen interface: 17.78 cm;
• Synchronised operation with the ROQ carousel;
• Automatic printing of adhesives and speciality effects;
• Compatible with ROQ oval and circular carousels.

The advantages of the ROQ ONE for textile workshops

The ROQ ONE automates several operations often carried out manually around textile screen printing carousels.

This automation provides several production advantages:

• Fewer operator interventions around the carousel;
• More consistent textile adhesive applications during long runs;
• Reduction of residues linked to spray adhesives;
• Smoother production organisation;
• Direct installation within automatic ROQ production lines.

The ROQ ONE suits textile workshops looking to automate selected technical applications without slowing high-output screen printing production.

ROQ ONE compatibility

The ROQ ONE works with ROQ industrial screen printing equipment and complements technical applications such as textile flocking, decorative printing and speciality screen printing effects.

It complements several ROQ technical systems dedicated to speciality textile effects:

• ROQ FLOCK;
• ROQ FOIL;
• ROQ YOU;
• ROQ NEXT;
• ROQ ECO;
• ROQ OVAL PRO;
• ROQ OVAL EVOLUTION.
