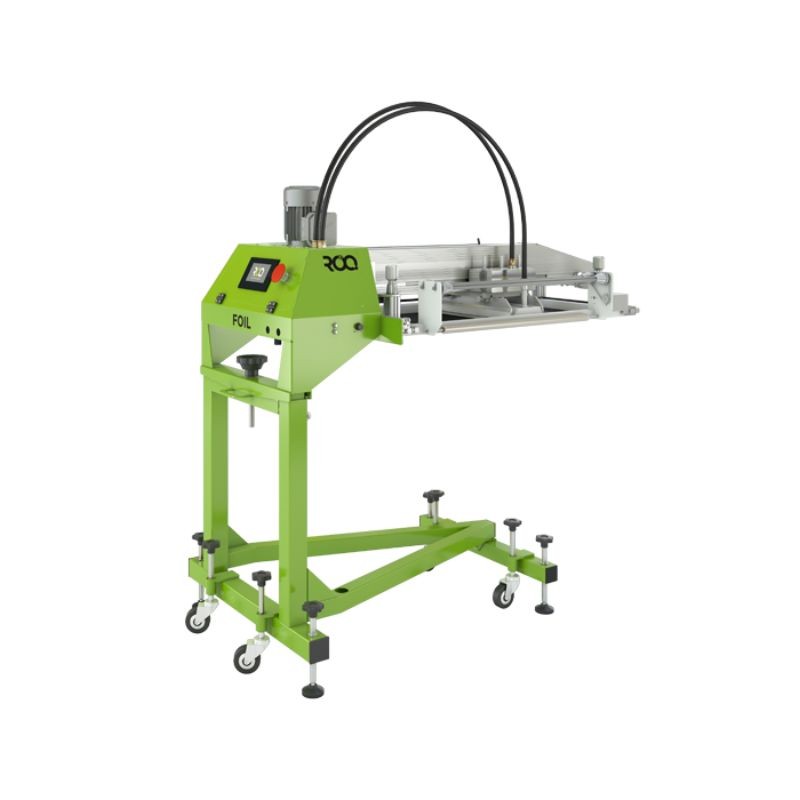

ROQ FOIL | Metallic Foil Application for Screen Printing
- Reference: ROQ-FOIL
Description
Metallic finishes on textiles usually require a dedicated operator and a separate heat press. The ROQ Foil module removes this constraint by integrating foil application directly into the production flow of the screen printing carousel.
ROQ holds the patent for this technology. It is the only solution on the market capable of applying foil without interrupting production.
With a production speed of up to 450 pieces per hour, workshops gain smoother workflows and improved profitability. Its integration saves up to 90% of operator time compared with a manual heat press.
Technical specifications of the ROQ FOIL
The 350 × 500 mm format allows foil application over a large textile printing area. This surface is suitable for logos and designs on t-shirts or sweatshirts. It offers screen printing workshops great flexibility to produce ultra-bright textile transfers.
Below are the key specifications required for operating the ROQ FOIL in a workshop:
- Maximum temperature: 200 °C, adjustable depending on the material
- Compressed air: 95 l/min at 7 bar
- Power supply: 230V+N / 2×230V
- Maximum power: 2.5 kVA
- Dimensions: 1,450 × 760 mm, height 1,400 mm
The ROQ FOIL in textile workshops
The ROQ FOIL meets the needs of fashion designers and sportswear brands looking for glossy finishes. It enables collections with gold, silver or holographic effects without requiring an additional operator.
The process takes place in two steps on the carousel. First, an adhesive is printed onto the textile through a screen printing frame at the exact position of the design. The ROQ Foil module then applies the foil using pressure and heat, up to 200 °C.
This standalone module synchronises with several presses in the ROQ range, including ROQ YOU, ROQ ECO, ROQ NEXT, ROQ FIT, ROQ Oval PRO, ROQ OVAL RUN and ROQ OVAL EVOLUTION.
| ROQ FOIL | 3550 |
|---|---|
| Print area (mm) | 350 × 500 |
| Compressed air consumption (l/min at 7 bar) | 95 |
| Power supply (VAC) | 230V+N, 2×230V |
| Maximum temperature (°C) | 200 |
| Maximum consumption (kVA) | 2.5 |
| Total length (mm) | 1450 |
| Total height (mm) | 1400 |
| Total width (mm) | 760 |
