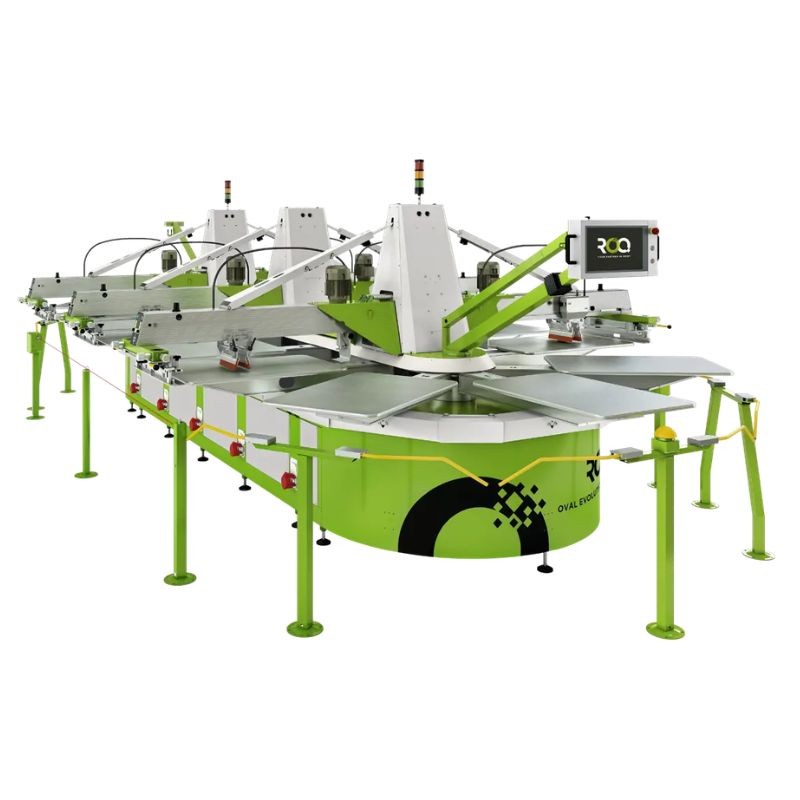

ROQ OVAL EVOLUTION | Industrial Screen printing Press

Description

Designed for intensive textile decoration. The industrial screen printing press ROQ OVAL EVOLUTION maintains high output across long production runs.

Its oval design reorganises production by allowing 2 to 4 jobs to run simultaneously on a singlemachine. Available in 9 configurations, this press suits workshops and businesses looking to maximise profitability while making the most of their production floor space.

ROQ OVAL EVOLUTION specifications

The screen printing press reaches up to 950 garments per hour. Available from 16 to 56 platens, it supports 10 to 50 colours depending on the chosen model.

Print areas range from 500 × 700 mm up to 1,100 × 1,600 mm, covering all garment and accessory sizes: children's t-shirts, XXL sweatshirts, oversized textiles and tote bags.

• Honeycomb aluminium platens;
• Electric squeegee drive with AC frequency inverter;
• Installed power: 6.5 to 25.5 kVA depending on configuration;
• Screen clamping: U-clamps or pin registration system;
• Individual control panel on each print head.

The ROQ Oval Evolution is compatible with Industry 4.0 standards. It can be integrated into a connected production line for real-time manufacturing data monitoring.

Workshop applications of the ROQ OVAL EVOLUTION screen printing press

The ROQ OVAL EVOLUTION suits intensive production workshops that need to make better use of floor space. Its oval design provides more platens than a standard carousel press while using a more compact layout.

The press can run 2 or 3 different jobs at the same time, limiting downtime between runs and increasing overall output.

This screen printing press remains straightforward to operate despite its production capacity. Each print head includes its own adjustment panel, allowing speed, pressure and squeegee angle to be changed without stopping other stations. A 38.1 cm touchscreen centralises the main settings.

Options and Add-on Modules for the ROQ OVAL EVOLUTION

Built to support long-term growth, the screen printing press works with a wide range of ROQ add-on modules:

• ROQ FLASH EVOLUTION: flash cure units positioned under the print heads;
• ROQ FLOCK: integrated flocking module for velvet effects;
• ROQ FOIL: hot foil stamping system for premium finishes;
• ROQ CTS: Computer-to-Screen direct imaging for faster setup;
• ROQ Sahara: industrial conveyor dryer at the end of the line.

ROQ OVAL EVOLUTION configurations

The ROQ OVAL EVOLUTION comes in multiple lengths and layouts depending on production volume. Available in 9 models from P16 to P56, with 10 to 50 colours depending on configuration.

The four chassis sizes correspond to increasing print areas:

• XL+: standard format up to 500 × 700 mm, suited to classic t-shirts and polo shirts.
• 2XL: enlarged print area for sweatshirts and garments from size L to XL.
• 3XL: large format for XXL sweatshirts and oversized textiles.
• 4XL: maximum format up to 1,100 × 1,600 mm, for the largest garments and oversized tote bags.

Each size is available in short or long version, depending on the available floor length in your workshop.

* One squeegee with flooding for a A4 print.

** Consumption of each electric printhead: 50l/min - 1.8 cfm in 15 pieces/min.

*** These values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure on the machine.

- Power supply: 3x230V, 3x400V+N - 50Hz or 60Hz. See flash cure page

How many jobs can the ROQ OVAL EVOLUTION run simultaneously?

The ROQ OVAL EVOLUTION can handle 2 to 4 jobs simultaneously on a single press. This capacity depends on the selected configuration and the number of colours per run. This flexibility significantly reduces downtime between production runs.

What floor space is required to install a ROQ OVAL EVOLUTION?

The press length ranges from 7.7 metres (P16 XL+ short) to 40.5 metres (P56 4XL long). Width varies between 4.05 and 4.85 metres depending on the chassis. The popular P24 in 2XL short measures 12.9 × 4.35 metres.

What is the difference between short and long versions of the ROQ OVAL EVOLUTION?

Short versions optimise space for workshops with limited floor length. Long versions provide more room between stations, making access and maintenance easier. The difference ranges from 1 to 3 metres depending on the model.

ROQ Oval Evolution or ROQ Oval Pro: which one to choose?

• Choose the Evolution if you run mixed volumes, large format jobs up to 4XL, and need to manage several jobs simultaneously on a single press.
• Choose the Pro if you prioritise centralised press control, faster programming and reduced setup times.
