Stainless Steel Washout Booth for Screen Printing | WB-1010
- Reference: MTP-WB-1010
€1,500.00 Tax excluded
Description

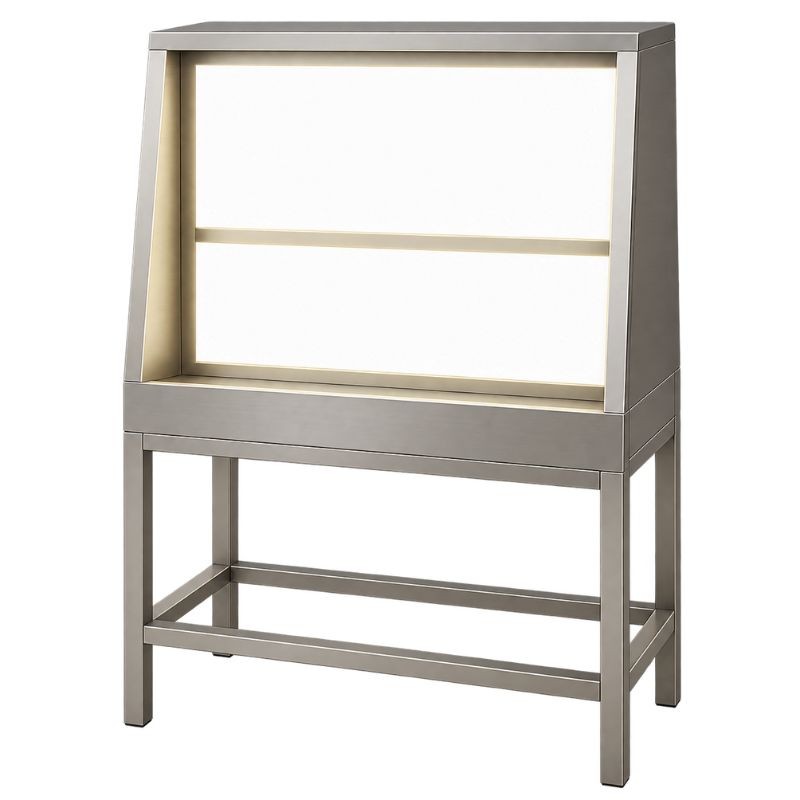

The WB-1010 stainless steel screen printing washout booth features LED backlighting and a stainless steel structure. Stainless steel withstands moisture and helps limit corrosion, even with intensive use.
You can clean screens up to 90 × 110 cm. With an internal depth of just 35 cm, it takes up little workshop space.
WB1010 stainless steel screen printing washout booth specifications
The WB-1010 has the following dimensions and features:
- Width: 1220 mm;
- Depth internal : 350 mm;
- Cleaning area : 1220 × 350 × 1000 mm;
- Height: 1650 mm;
- Maximum screen size: 90 × 110 cm;
- Weight: 90 kg;
- Stand requires assembly before installation.
Benefits of a stainless steel screen printing washout booth
The backlighting provides a clear view of the printing screen immediately after washing. Any remaining residue is easier to spot before preparing the screen again.
You can inspect the screen directly at the washout booth. This avoids moving it to another area to check the results.
This makes it easier to check screen cleaning results between preparation stages.
Stainless steel is well suited to areas frequently exposed to water. It is easy to clean and requires little daily maintenance.
Installing the WB-1010 screen washout booth
The WB-1010 stand requires assembly before final installation.
Choose a location near a water supply and a drain. The LED backlighting also requires an electrical socket.
The 35 cm depth makes installation along a wall easier. This leaves more room to move around other equipment.
This layout is particularly suitable for workshops with limited screen preparation space. It also leaves enough room to handle a screen printing frame.
Maintaining the WB-1010 stainless steel washout booth
Remove residue from the bottom of the washout booth after cleaning sessions. Check the drain to prevent build-up and maintain proper drainage.
Clean the walls with a non-abrasive sponge and a cleaning product suitable for stainless steel.
Clean the backlit panel as well. A clean surface maintains good visibility when washing screens.
Regular maintenance of the stainless steel screen printing washout booth also helps keep surfaces clean between batches.
What size washout booth should you choose for your printing screens?
Choose a washout booth based on the external dimensions of your largest frames. The WB-1010 accepts screens up to 90 × 110 cm.
Specialist manufacturers also recommend using the actual frame dimensions rather than the external dimensions of the booth.
This measurement helps you select a screen printing washout booth suitable for your usual frame sizes.
Stainless steel or polypropylene for a screen washout booth?
Stainless steel provides a rigid structure that is easy to clean. Polypropylene is lighter and also resists many chemicals. The choice mainly depends on the products used and your workshop requirements.
For screen reclaiming, the material must be compatible with the chemicals used in your workshop.
Does a screen reclaiming booth require a dedicated drain?
The screen reclaiming booth can be connected to a drainage system suitable for wash water.
