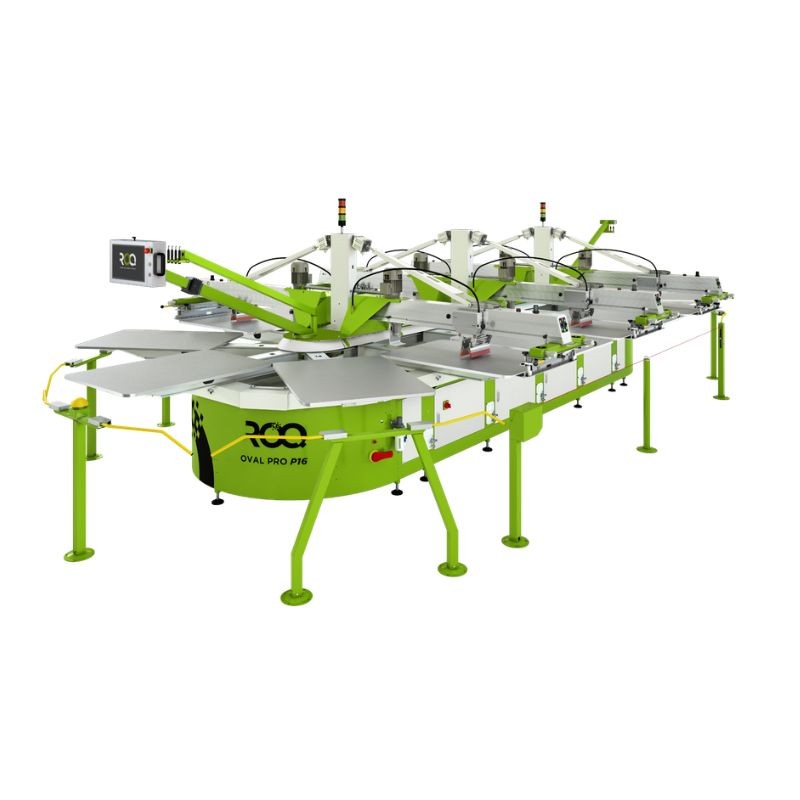

ROQ OVAL | PRO high-performance screen printing machine
- Reference: ROQ-OVAL-PRO
Description
Textile screen printing workshops increasing their production pace primarily look for reliability. The ROQ Oval Pro high-performance screen printing machine meets this requirement with an advanced rotation system featuring integrated safety. Manage the production line easily in real time from the central console.
Where other screen printing machines require lengthy setup times, the ROQ Oval Pro reduces preparation time thanks to a fast and intuitive programming interface. Every minute saved during setup becomes an additional minute of production.
Technical specifications of the ROQ Oval Pro
The ROQ Oval Pro is available in 9 configurations, from 16 to 56 platens. It supports up to 24 colours depending on the model. Production speed can reach 900 pieces per hour in the XL+ format.
- Available configurations: P16 to P56 in XL+ version
- Up to 24 integrated flash cure connections depending on configuration
- Electric squeegee movement with AC variable drive
- Independent lifting of each print head
- Pneumatic frame locking: pin or U-frame system
- Micro-registration with vernier scale on each head
- Central console with polychrome LCD touchscreen
- Compressed air consumption: 130 l/min at 7 bar
Controlled and optimised textile customisation
The ROQ Oval Pro high-performance screen printing equipment stands out through the synchronisation of all peripheral modules via the central control system. Flash dryers, ROQ Foil and ROQ Flock operate in direct coordination with the machine.
Each head features its own individual control panel. Printing speed, squeegee height and angle, and stroke length can all be adjusted station by station without interrupting the rest of the production.
The heads lift into a high position to facilitate screen cleaning and maintenance operations. This technical detail helps reduce unplanned downtime during long production runs.
Compatibility and integration into a production line
The ROQ Oval Pro works with standard professional textile screen printing consumables: aluminium frames, plastisol inks, water-based inks and high-opacity inks.
When combined with a CTS (Computer-to-Screen) system or the PRU (Positive Registration Unit), setup times are reduced and maintenance requirements are minimised. The power supply accepts 3x230V or 3x400V+N at 50 or 60 Hz.
Installed power ranges from 6.5 to 13.5 kVA depending on the configuration, excluding flash curing. This controlled consumption facilitates integration into workshops with existing electrical installations.
| ROQ OVAL PRO | P16 XL+ | P20 XL+ | P24 XL+ | P32 XL+ | P36 XL+ | P38 XL+ | P44 XL+ | P50 XL+ | P56 XL+ | |
|---|---|---|---|---|---|---|---|---|---|---|
| Number of colours (max.) | 10 | 14 | 18 | 24 | ||||||
| Number of platens | 16 | 20 | 24 | 32 | 36 | 38 | 44 | 50 | 56 | |
| Number of flash cure connection units (optional) | 10 | 14 | 18 | 24 | ||||||
| Maximum production (pieces/hour) * | 900 | |||||||||
| Compressed air consumption (l/min. 7 bar) ** | 130 l/min + consumption of each printhead | |||||||||
| Maximum consumption (kVA) *** | 6.5 | 7.5 | 9 | 13.5 | 13.5 | |||||
| Total length (mm) | Short | 7765 | 9418 | 11070 | 14374 | 16026 | 16852 | 19331 | 21809 | 24287 |
| Long | 8788 | 10711 | 12618 | 16430 | 18336 | 19289 | 22149 | 25008 | 27867 | |
| Total height (mm) | 2230 | |||||||||
| Total width (mm) | 4050 | |||||||||
| Machine weight (kg) | Short | 2416 | 2927 | 3439 | 4448 | 4956 | 5300 | 6023 | 6875 | 7544 |
| Long | 2567 | 3118 | 3660 | 4783 | 5326 | 5679 | 6392 | 7288 | 8002 | |
ROQ Oval Pro or ROQ Oval Evolution: how to choose?
Choose the Pro if you prioritise centralised control, fast programming and advanced synchronisation of your peripheral modules.
Choose the Evolution if you need large formats up to 4XL frames, the ability to manage several jobs simultaneously and maximise output per machine.
Why choose the ROQ Oval Pro with Manutech-Print
Manutech-Print supports textile workshops in selecting and integrating their screen printing equipment. Our team advises on the ROQ Oval Pro according to your existing setup, your production volumes and your specific requirements.
The ROQ Oval Pro is available with personalised technical advice and access to spare parts.
