Description

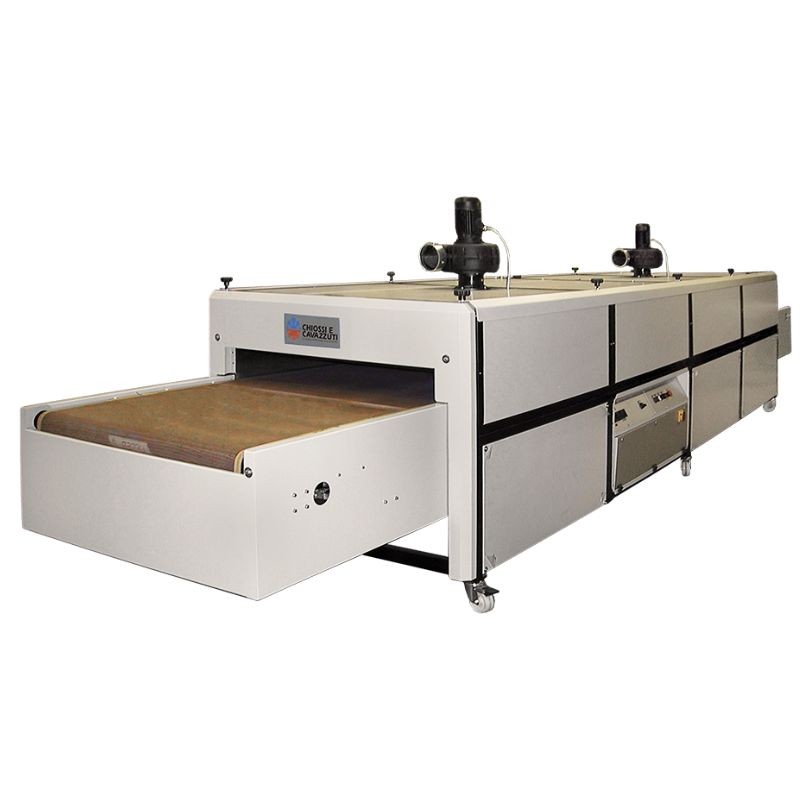

Chiossi e Cavazzuti has been manufacturing industrial textile drying tunnels since 1979. The NOIR 5000 industrial screen printing drying tunnel brings this expertise together: 550 °C ceramic panels, up to 900 pieces per hour, 32 kW power consumption, with an outer surface that remains cool.

The NOIR 5000 is designed for workshops equipped with automatic presses built for high-volume production such as the ROQ YOU. This industrial screen printing dryer targets high-speed production lines.

The NOIR 5000 becomes essential as soon as production exceeds the capacity of a standard drying tunnel.

Ceramic infrared technology of the NOIR 5000 drying tunnel

The NOIR 5000 high-capacity textile drying tunnel uses ceramic infrared radiant panels reaching up to 550 °C. Temperature is electronically controlled continuously directly on the panels. The result is consistent plastisol ink curing, regardless of fabric colour, light or dark. No cold spots, no under-curing, and consistent curing even at high production speeds.

The panel height of the industrial screen printing dryer can be adjusted according to production needs. You can adapt the panel-to-belt distance depending on garment thickness or ink type. This flexibility reduces production constraints.

Conveyor and automatic belt tracking of the NOIR 5000

The belt resists heat and ink. It does not stick, does not deform, and withstands intensive cycles without degradation. The tracking system uses automatic pneumatic correction to adjust belt alignment in real time. Belt misalignment during production is eliminated. The NOIR 5000 conveyor remains aligned without operator intervention.

The industrial electric drying tunnel operates with air cooling and manual-reset circuit breakers. In case of interruption, production restart remains quick and safe. The NOIR 5000 maintains high-volume industrial output.

Thermal insulation of the NOIR 5000 screen printing dryer

The structure includes high-density mineral wool insulation. The external surface remains at ambient temperature, even during intensive production.

Two direct benefits: reduced energy consumption and improved working conditions for operators.

Options for the NOIR 5000 textile drying tunnel

The NOIR 5000 drying tunnel for long runs works with plastisol inks. A pulsed hot air system is available as an option for drying water-based inks. One machine covers multiple production needs.

• 1600 mm wide belt option;
• 300 mm increased inlet height option;
• Infeed and outfeed extensions available;
• Cooling hood at tunnel exit.

Integration of the NOIR 5000 in a screen printing workshop

The NOIR 5000 textile dryer for high-volume production integrates directly after automatic or manual screen printing presses. It is compatible with standard plastisol inks.

For workshops handling high volumes in textile printing, this Chiossi e Cavazzuti industrial screen printing dryer represents a long-term investment. It is designed to last, not just to meet immediate needs.

Below are the key technical specifications for integration into your production line.

What is the difference between the NOIR 3750 and the NOIR 5000 ?

The NOIR 3750 is suitable for workshops looking to increase production speed with a more versatile machine. The NOIR 5000 adds a 5000 mm heating length, 32 kW of power, and a capacity of up to 900 pieces per hour. It is designed for a more industrial, high-output production approach.

Can the NOIR 5000 be used with water-based inks ?

Yes, with an optional forced hot air system. This configuration allows the NOIR 5000 industrial textile drying tunnel to handle water-based ink drying.
