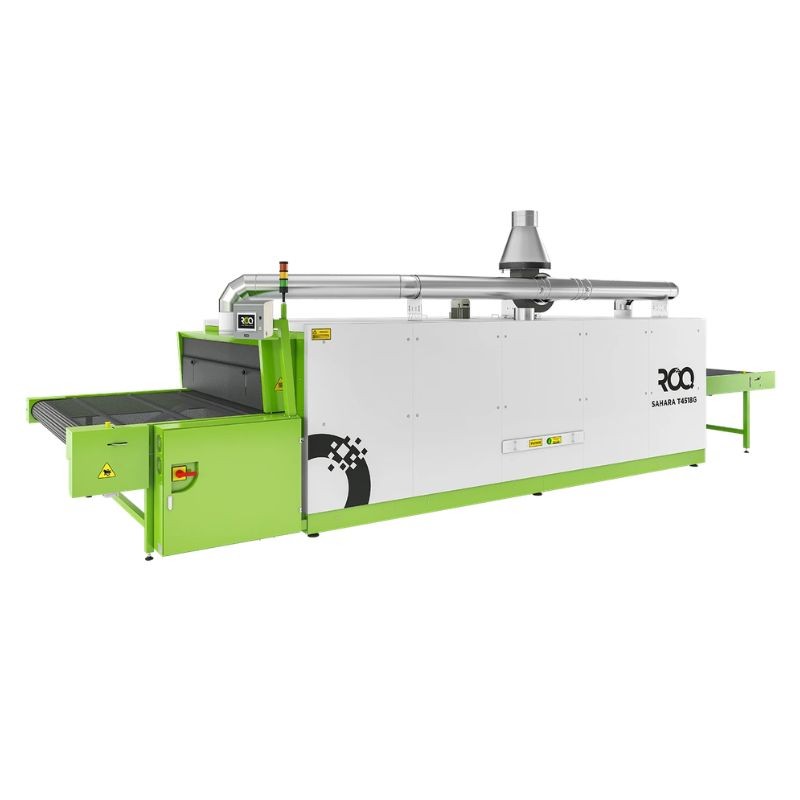

ROQ Sahara conveyor dryer in industrial screen printing production

ROQ Sahara | Conveyor Dryer for Screen Printing

Reference: ROQ-SAHARA

Quantity

ROQ Sahara conveyor dryer for screen printing. Boosts production with advanced forced air drying. Contact us.

Description

Industrial textile conveyor dryer designed for ink curing in industrial production. The ROQ Sahara operates continuously and keeps up with the speed of the fastest automatic screen printing presses.

This industrial conveyor dryer adapts to each workshop’s installation and energy requirements. It runs on electricity and is also available in gas or hybrid versions depending on the production setup.

The Standby mode maintains a minimum temperature during production breaks and reduces energy consumption by up to 30%. Production can restart instantly without preheating, securing continuous textile production.

ROQ Sahara Conveyor Dryer Specifications

The ROQ Sahara meets the requirements of industrial screen printing workshops and high-volume textile production.

It can be equipped with a double independent belt system allowing two different productions to run simultaneously. Each belt runs at its own speed to adjust curing time depending on ink type, textile, or production speed.

Temperature range: 90 °C to 200 °C;
Thermal power: from 22.5 kW to 140 kW depending on configuration;
Heating chamber length: up to 8,800 mm;
Settings memory by ink type;
Total width: from 1,400 mm to 2,350 mm depending on model.

Applications of the ROQ Sahara Conveyor Dryer

This conveyor dryer is installed at the exit of an automatic screen printing press or manual press to cure textile inks continuously. It is suitable for continuous production workshops, industrial environments, and growing textile businesses that need to increase production capacity.

With a clearance height of 140 mm, often higher than market standards, it can process different types of textiles:

Standard garments: t-shirts, polos, sweatshirts in cotton or polyester;
Thick textiles: hoodies, sweaters;
Accessories: tote bags, canvas bags.

This industrial textile dryer runs all day without interruption and keeps up with high production speeds without slowing down the workflow.

Options and Compatible Equipment

The ROQ Sahara integrates into a textile production line, manual or automatic. It works with ROQ screen printing equipment and with most equipment available on the market.

Automatic presses: ROQ NEXT, ROQ ECO, ROQ FIT, ROQ YOU;
Hybrid machines: ROQ Hybrid;
Manual or automatic presses from other brands.

The dryer can be integrated into an existing production flow and operate as a conveyor dryer for automatic screen printing press.

Available Configurations of the ROQ Sahara

Thanks to its modular design, the dryer adapts to production, speed, and available workshop space. The tunnel can be configured in length, width, and power according to industrial textile production requirements.

Available in several configurations, including four main belt widths:

ROQ Sahara: 900 mm

Compact model suitable for textile workshops with limited space. Designed for standard textile production and workshops looking to automate continuous drying.

ROQ Sahara: 1100 mm

Conveyor dryer for standard textile production. Suitable for everyday garments such as t-shirts, sweatshirts, and common textiles.

ROQ Sahara: 1500 mm

Model designed for industrial production and large-format textile prints. Keeps up with automatic press speeds and high production volumes.

ROQ Sahara: 1800 mm

Wide belt conveyor dryer designed for intensive industrial production. This version can be equipped with a double independent belt system allowing two simultaneous productions.

ROQ Tunnel Model	Drying area (cm)	Belt width (cm)	Heating power (kW)
T3009E/G – T3011E/G	270×90 / 270×110	90 – 110	22.5 – 31
T4511E/G – T4515E/G	430×110 / 430×150	150	31 – 36
T6015E/G – T7515E/G	560×150 / 720×150	150	63 – 72
T9015E/G	880×150	150	72
T3018E/G – T4518E/G	270×180 / 430×180	180	36
T6018E/G – T7518E/G	560×180 / 720×180	180	72
T9018E/G	880×180	180	72
